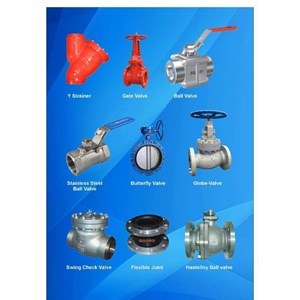

Detail VALVE Pipe Connection
Ukuran: • ¼ " to 48" Ratings: • 150 lbs up to 2500 lbs Design and manufacturing: • API 600 for bolted bonnet steel valves • API 602 for compact and smaller steel valves • API 603 for corrosion resistant bolted bonnet valves • API 608 for ball valves - flanged and butt-welding ends • API 609 for butterfly valves – double flanged, lug and wafer • API 6D for petroleum and natural gas industries-pipeline transportation systems-pipeline valves • ASME B16.34 Valves - flanged, threaded, and welding end Inspection and test: • API 598 valve inspection and testing • API 6D for petroleum and natural gas industries-pipeline transportation systems-pipeline valves End dimension: • ASME B16.5 pipe flanges and flanged fittings • ASME B16.47 large diameter steel flanges • ASME B16.25 buttwelding ends • ASME B16.11 forged steel fittings, socket-welding and threaded ends Face to face: • ASME B16.10 face to face and end-to-end dimensions of valves Materials: • WCB/ A105, WCC, WC1, WC6, WC9, C5, C12, LCB/ LF2, LCC, CF8/ F304, CF8M/ F316, CF3/ F304L, CF3M/ F316L, CF8C, 4A, 6A, 904L, Duplex, Superduplex, exotic materials
